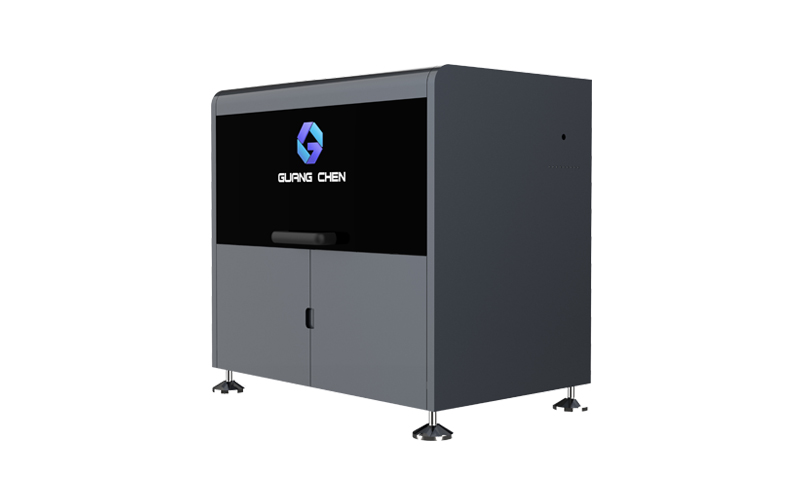

Azure Dragon360

Printer name

High speed cylindrical printer

Model

Azure Dragon 360

Print size

Print diameter 250mm - 280mm(customizable size)

Curing system

Ultraviolet curing

Printer width

Max. 300mm (customizable size)

Printhead

Ricoh G5i/Epson i1600

Print head count

1 - 4

Print color

W+V+KCMY

Printing accuracy

720×900dpi/720×1200dpi/720×1800dpi

Print height

Maximum drop 150mm

Ink system

Dual dual negative pressure system /1.5L ink drum capacity/white ink mixing

Motion system

High precision module drive

Output software

Monthey

Data interface

Gigabit network port/USB3.0

Temperature and humidity

20 - 30 °C /40 - 80% (non - condensing)

Electricity demand

200 - 240VAC, single phase, 50/60Hz, average operating current 32 amp

Machine weight

500KG

Equipment size

1460×800×1680mm

Package size

1600×900×1800mm
