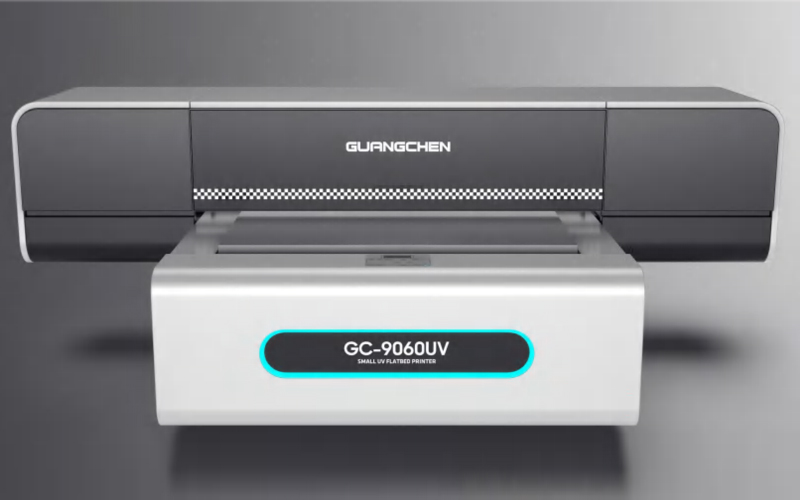

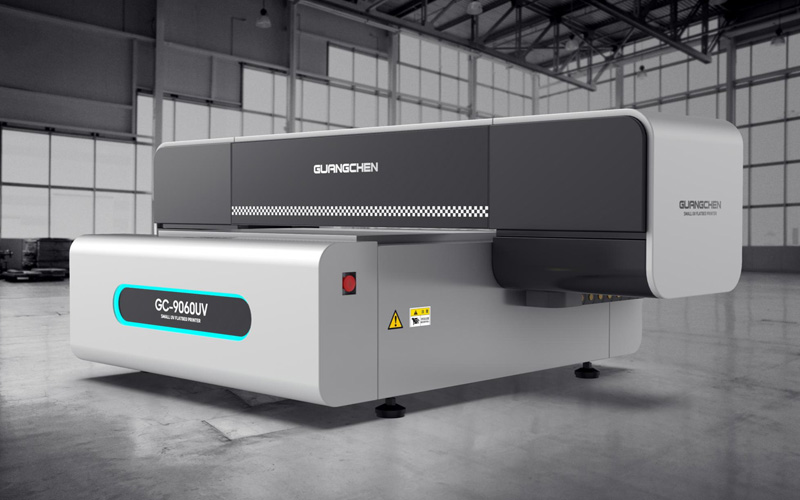

GC9060UV

Print Size

900*600 MM

Printing height

1MM-150MM adjustable

Nozzle configuration

XP600、TX800、i3200、G5i

Lifting structure

Platform lifting

Ink supply method

Direct supply or negative pressure

Printing colors

C, M,Y, K, LC, LM,W, Optional V

Curing Method

Air Cooled UV Lamp

Printing speed (based on xp600)

4 PASS 6M2/H

Electricity requirements

110V-220V50~60hz 800W

Equipment size

2201MM*W1460MM*H800MM

Equipment weight

200Kg

Work environment

Temperature 20 ° C-30 ° C Humidity 40% -70%

Fixed platform

Adsorption platform

Interface method

USB3.0

Software output

PhotoPrintlUltraPrintRlP Maintop V6.0

Operating system

Windows78\10 32bit\ 64bit
