GC1209UV

Printer name

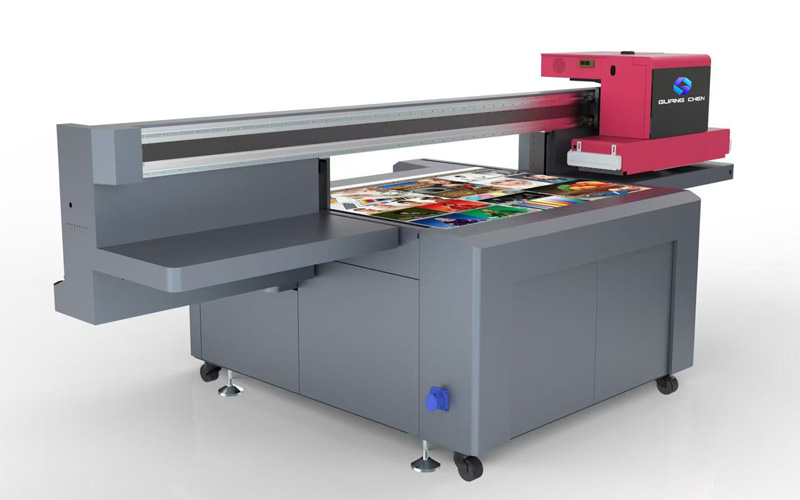

Intelligent visual flatbed printer

Equipment type

GC1209UV

Print size

1200mmx900mm

Visual system

Line sweep 600DPI high precision camera/visual positioning recognition system (1200DPI can be selected)

Printing Size

1200mmx900mm

Printhead

Ricoh G5i/G6, Epson i3200

Print head number

2-8(customizable)

Print color

W+V+KCMY(optional LC LM LK LLK)

Printing resolution

720x900dpi/720x1200dpi/720 x1800dpi

Print height

150mm

Ink system

Dual dual negative pressure system /l.5L ink drumcapacity/white ink mixing

Transmission system

High precision magnetic levitation guide/double Y power offself-locking motor

Output software

Photoprintsever

Data interface

Gigabit network port/USB3.0

Temperature andhumidity

20-30°C/40-80%(non-condensing)

Electricity demand

200-240VAC, single phase, 50/60Hz, average operating current 32 amps

Machine weight

700KG

Equipment size

2735x2044x1325mm

Package size

3500x2300x1500mm
